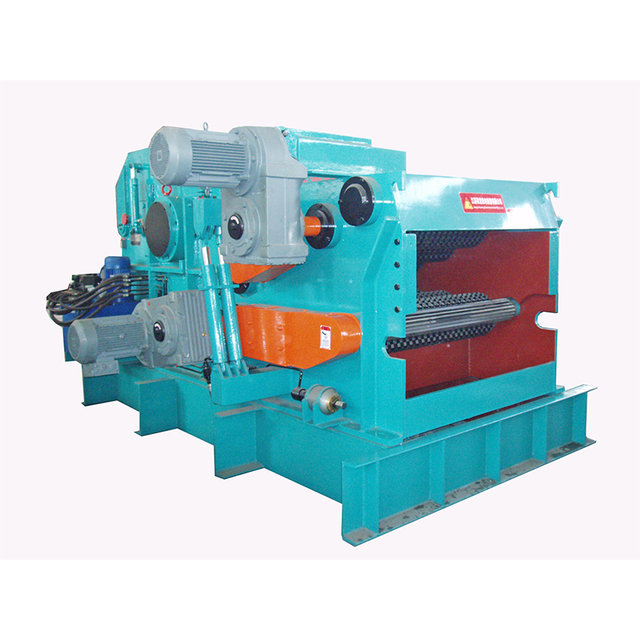

MBX系列鼓式削片机
产品分类:粉碎设备
产品描述
产品主要特点:
1、可将原木、小径木、木材采伐剩余物(枝桠、枝条等)、木材加工剩余物(板条、板皮、圆木芯、废单板等)、竹、棉杆、芦苇、稻草、麦草等非木质纤维杆茎切削成小于一定规格的片料。
2.高强度高精度箱体,硬质合金刀片,进口轴承。
3.液压驱动进料机构。
4.结构紧凑,操作简便,生产率高,原料适应性广,切削木片质量.
Main product characteristics
1. This series wood chipper can process various materials into chips at cer.tain specifications. The materials include logs, undersized logs, timber residues(tree branches, twigs, etc.), wood processing residues (lath, skin score logs, veneer waste, etc.) and some other non-wood fiber like bamboo cotton stalks, reeds, straw, straw, etc.
2.High strength and high precision box, carbide blades and imported bear.ing.
3.It is adopted with hydraulic feeding mechanism.
4. Compact structure, easy operation, high productivity, wide adaptability of raw materials, high quality wood chips, safe and reliable running, convenient maintenance.
| 型号 Model | MBX213 | MBX216 | MBX218 |
|---|---|---|---|
| 进料口尺寸(mm) Feeding inlet size(mm) | 160*400 | 230*500 | 300*680 |
| 刀片数量(片) Knife Qty. | 2 | 2 | 2 |
| 刀辊转速(转) Knife roller speed (rpm) | 592 | 590 | 650 |
| 加工原料最大直径 Maximum Dia.of raw material(mm) | 160 | 230 | 300 |
| 木片尺寸(mm) Final chip size(mm) | 30 | 30 | 30 |
| 生产能力(吨) Capacity(t/h) | 3-4 | 7-8 | 12-15 |
| 主电机功率(kw) Main Power(kw) | 45 | 55 | 110 |
| 喂料辊电机功率(kw) Feeder power(kw) | 2.2-3 | 3-4 | 4-5 |
| 油泵电机功率(kw) Oil pump power(kw) | 1.5*1 | 1.5*1 | 1.5*1 |
| 重量(kg) Weight(kg) | 2990 | 4070 | 7000 |
| 外形尺寸(mm) Dimension(mm) | 3421x1790x1060 | 3670x2517x2050 | 4348x1730x1258 |
| 输送机电机功率(kw) Conveyor power(kw) | 3 | 3 | 3 |
